Clip gauge


The Si-Plan Electronics Research Clip Gauge measures displacement by a cantilevered strain-gauged element.


Room-temperature Clip Gauge


The Clip Gauge features
  • Standards gauge lengths: 6mm; 8mm; 10mm
  • Replaceable knife edges with preset gauge lengths.
  • Gauge length setting pin.
  • Locking screw: allows the gauge length setting pin to be secured while the clip gauge is attached to the specimen.

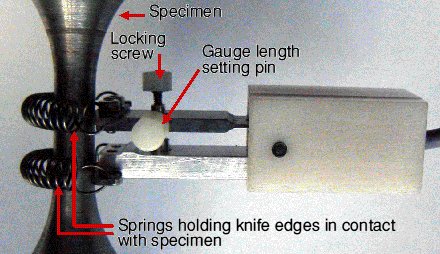

Detailed view of a Clip Gauge

Room-temperature extensometers


Room-temperature extensometers
Room-temperature extensometers
