Hydraulic power packs - 8, 14, 20, 30 litres per minute range

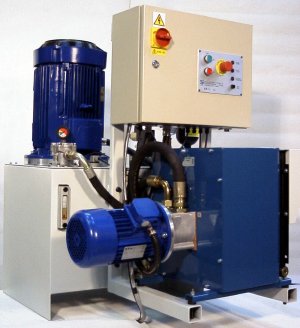

power2 Features
  • Fixed or variable delivery versions available.
  • Submerged pump for quite operation.
  • Control by PLC
  • Illuminated trips for:
  • Filter blocked.
  • Low oil level.
  • Oil over temperature.
  • Pump Start, Pump Stop and Emergency Stop buttons.
  • Off-line cooling and filtration systems.
  • Thermostatically controlled air blast cooler. (Alternative cooling option: water heat exchanger for coupling to a cooling water ring main.)
  • Gear pump as standard or Piston pump.
  • CE conformance
  • 25kW, fixed delivery, submerged pump
    Specification
  • Standard ratings, litres/minute
    8; 14; 20; 30.
  • Standard ratings in kilowatts:
    3; 5.5; 7.5; 11.
  • 100 litre oil capacity.
  • Dry weight: 270kg.
  • Filled weight: 350kg.
  • Electrical supply requirements 415V 3 phase 4 wire 50 & 60Hz versions available.
  • power1
    Special requirements
    Dimensions in millimetres

    Specifications may be updated. check when ordering

    Updated 20 April 2005
