Servo-hydraulic fatigue test machines - 25 kN to 200 kN



25kN, 50kN, 100kN servo-hydraulic test machine 50kN servo-hydraulic test machine ??kN servo-hydraulic test machine
Servo-hydraulic
25kN, 50kN, 100kN
Servo-hydraulic
50kN
Servo-hydraulic
150kN
25kN, 50kN 100kN 2 column
50kN servo hydraulic testing machine
Top
  • actuator mounted below the central crosshead
  • standard actuator options
    • ±25kN dynamic
    • ±50kN dynamic
    • ±100kN dynamic
  • standard actuator stroke options
    • ±25mm
    • ±50mm
    • ±100mm
  • load cell mounted on top crosshead
  • choice of column length
  • hydraulic crosshead lift (optional)

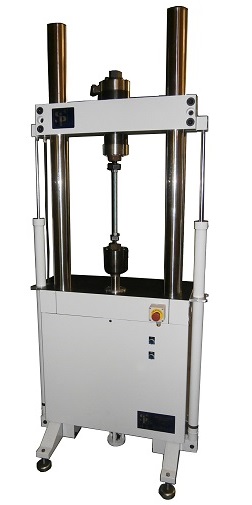

50kN 2 column
50kN servo hydraulic testing machine
Top
  • ±50kN dynamic rating
  • ±75kN static rating
  • actuator mounted beneath the lower crosshead
  • standard actuator stroke options
    • ±25mm
    • ±50mm
    • ±100mm
  • manual pinch bolt clamping
  • hydraulic crosshead lift
  • hydraulic unclamping (optional)
  • choice of column length

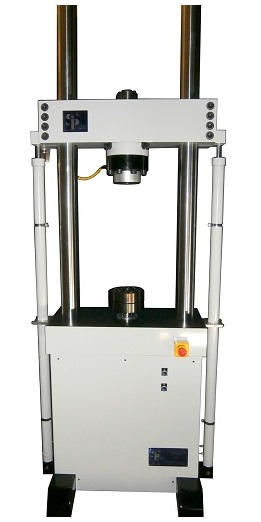

150kN 2 column
150kN servo hydraulic testing machine
Top
  • ±150kN dynamic rating
  • ±200kN static rating
  • actuator mounted beneath the lower crosshead
  • standard actuator stroke options
    • ±25mm
    • ±50mm
    • ±100mm
  • manual pinch bolt clamping
  • hydraulic crosshead lift (optional)
  • hydraulic unclamping (optional)
  • choice of column length


Please contact us for further information.
