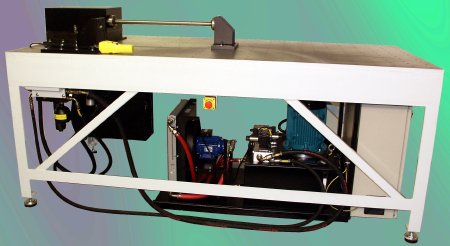

Locked Column Torsional Testing Equipment

Applications

• Steering column assemblies.
• Torsion fatigue testing.
• Stationary or locked format.
• Can also be configured for column bending and axial fatigue tests.
• Actuator: 3kN dynamic, ±50mm stroke.

Angle Assembly

• Angular capacity: ±30°.
• Angular measurement: ±40°.
• Resolution: ±0.02°.

Torque Assembly

• Torque cell ±500Nm.


  Torque capacity

  • 300Nm dynamic
  • 450Nm static.

Power pack

• 20 litre per minute air-cooled unit located under the rig table.
